Recommended equipment

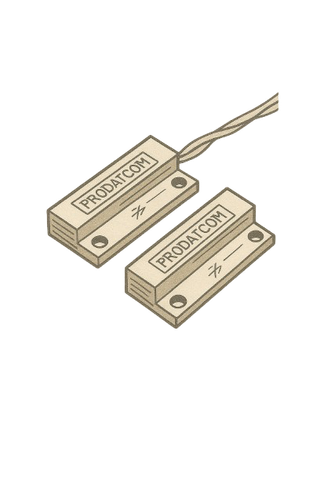

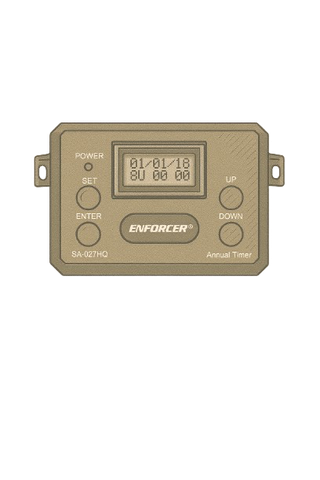

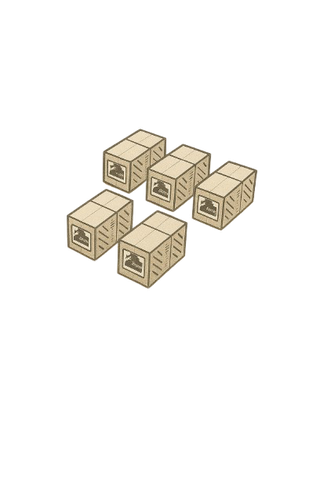

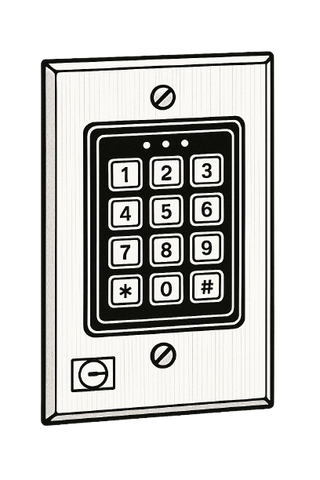

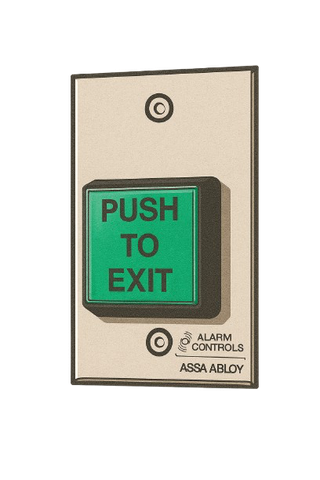

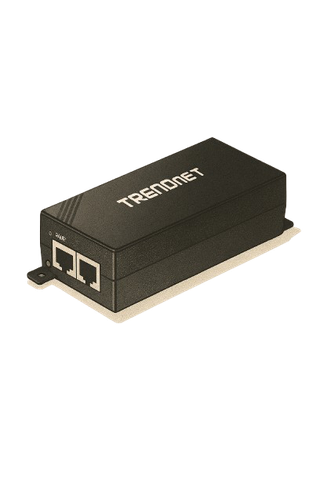

The following is a list of recommended door security items, including electric locks, low voltage wiring, network cables, external power supply, PoE injector, Ethernet couplers, keypad override, motion sensor, push-to-exit button, contact sensors, and alarm timer.
Use the tabs below or download it as a PDF. For installation instructions, please refer to our guide provided by Kisi Academy.
- How to install an electronic strike lock

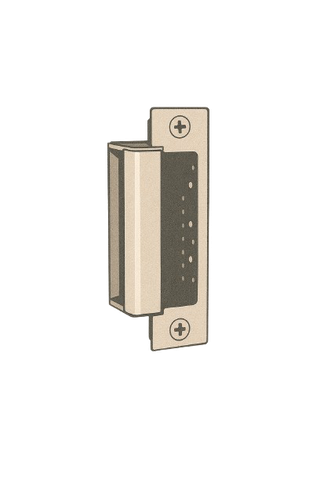

- HES 1006 industrial electric strike

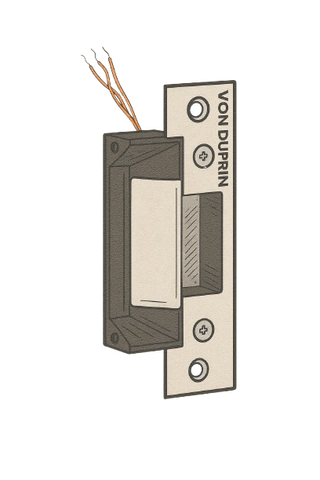

- Von Duprin electric strike lock - 4200 Series

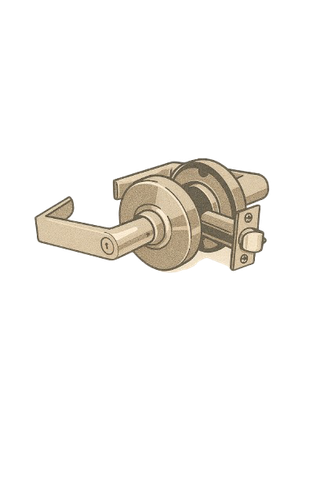

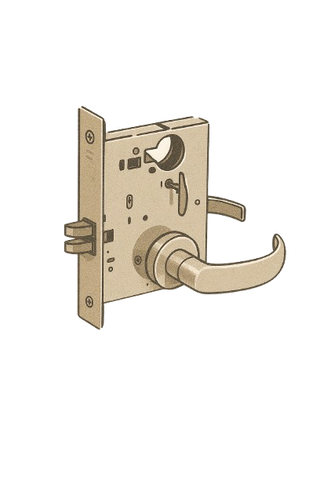

The 4200 Series Von Duprin electric strike lock is often installed in combination with the Schlage ND80 storeroom lock.

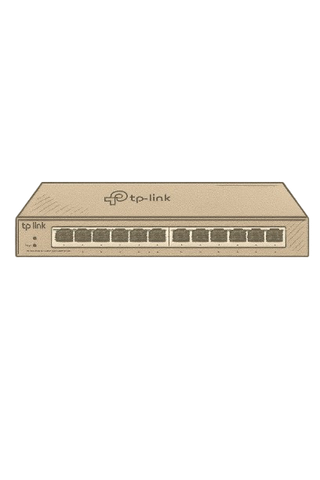

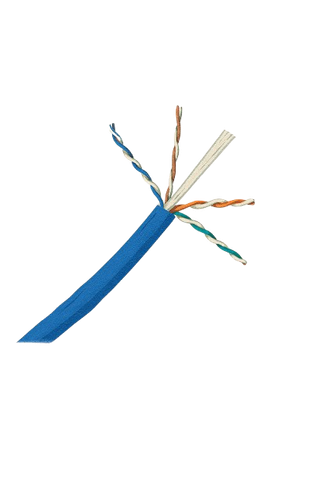

A CAT6 or CAT5 cable will be installed as a direct connection from the reader location to the IT room, where it will be linked to the switch via Power over Ethernet (PoE).

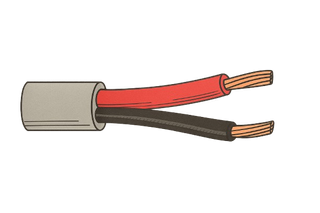

- Wire a 18-2 gauge low-voltage wiring from the electronic door hardware to the Kisi controller relay positioned in the IT room.
- Find 18-2 gauge cables here

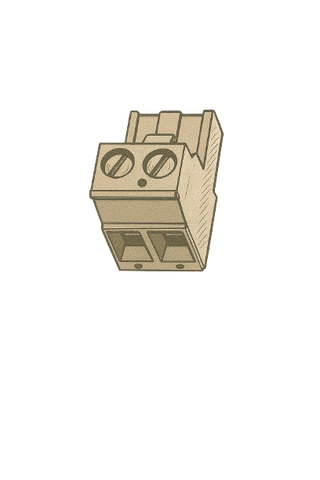

- TE Connectivity AMP Connectors
- TERM BLOCK PLUG 2POS STR 5.08MM
- Manufacturer Product Number: 796634-2
For further details visit our website or read our guide on how to install a door access control system.
